0.6/1KV Crosslinking polyethylene insulated power cable


  • Used for circuit under 0.6/1kV to control. It has excellent electric, physical, chemical traits.

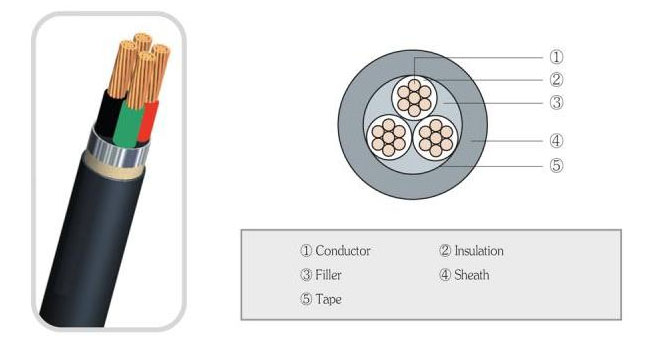

  • Structure


    • 1. Conductor : Stranded copper cable (KS CIEC 60228 2 grade)
    2. Insulator : Crosslinking polyethylene(XLPE)

    3. color of insulator :
    double cores: white, black
    three cores: white, black, red
    four cores: black, white, red, green
    * White is good for natural color of crosslinking polyethylene(XLPE).

    4. Sheath : PVC, hydrogen-free PVC or HFPO

  • Applied size : KS C IEC 60502-1
    		•

  • Comparison general PE with XLPE at 200℃

    •
  • What is XLPE?

    • XLPE has transformed linear PE modules structure. into net structure. It has excellent electric, physical,
    chemical traits. It has been used widely for low pressure and also high pressure electric cables’ insulators.

  • XLPE Merits

    • - It is hardened at high temperatures
    - It has little heat deformation.
    - Water resistance is excellent.
    - It has excellent chemical resistance.
    - It has excellent Heat resistance.
    - Light weight.
