• It is a cable fit to remote-control of under 600/1000V power plant, substation, and so on.
    It has excellent flexibility, combustibility, corrosive-endurance, and so on. It is good to tell core of wire.

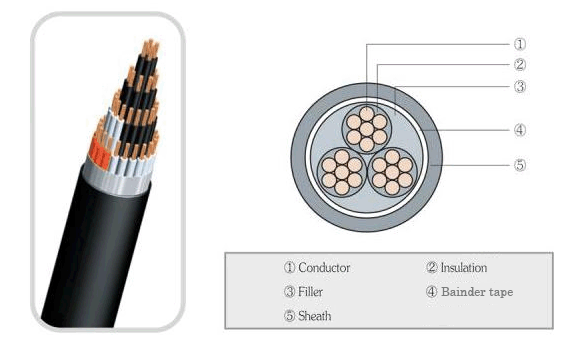

  • Structure

    • 1. Conductor : Stranded copper cable (KS CIEC 60228 2 grade)

    2. Insulator : PVC or XLPE

    3. Sheath : PVC, Inflammable PVC(HF-PVC), or Low toxic inflammable polyolefin(HFPO)

    4. Wire Core Screening :
    1)  Color
    Screening core wire under four cores should be carried out depending on insulator surface color,
    other suitable ways. White is good to become natural color of it.
    double cores: black white
    three cores: black, white, red
    four cores: black, white, red, green

    2) Numbers
    Wire core screening for over 5 cores wires is marked by printed numbers with white ink on black insulators

    3) Other Screening
    Screening wire cores insulated by over 5 cores XLPE can be signed by coloring surface of insulators, insulators, or other methods

  • Applied size : KS C IEC 60502-1
    		•
