PVC Indoor Telephone Wire (TIV)
  • It is a polyvinyl chloride which is used to wire telephone wires outdoor. It is a double core 8-shaped PVC outdoor
    telephone wire.
    		•

      Outdoor Telephone Wire (TOV)
  • It is for outdoor telephone wiring.
    It is used to take in from terminal box to indoor. It is a polyvinyl chloride.
    It is a double core 8-shaped PVC outdoor telephone wire.
    •

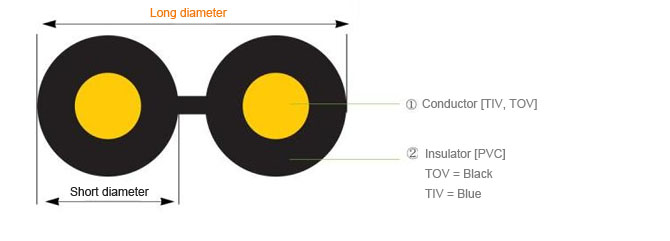

      Structure

    Product
    name
    (symbols)    		 Conductor
    diameter


    mm    		 Insulated
    thickness


    mm     		Completed outside diameter
    (long diameter*
    short diameter)
    mm     		Conductor Internal
    voltage


    V    		 Insulation
    resistance


    MΩ/km    		 Standard
    length


    m
    maximum
    resistance

    Ω/km    		 drawing
    load

    N
    TIV 0.8 0.6 4.2x2.0 34.3 138.27 1500 60 300
    TOV 1.0 1.0 6.4x3.0 24.3 333.4 1500 60 300
    1.2 1.0 3.9x3.2 16.7 483.5 1500 60 300
